beacon shelter

Specification

available sizes
modular bays of varying sizes can be configured to your requirements – contact our sales team for further details
structure
galvanised steel frame
cladding
aluminium extrusions and grade 316 stainless steel conceal strong galvanised steel frame
finish
Peened and electro-polished stainless steel, anodised or powder coated aluminium extrusions and branding options
lighting
high efficiency long life and lower power LED lighting
electrical
enclosed within shelter framework and future proofed for Smart City initiatives

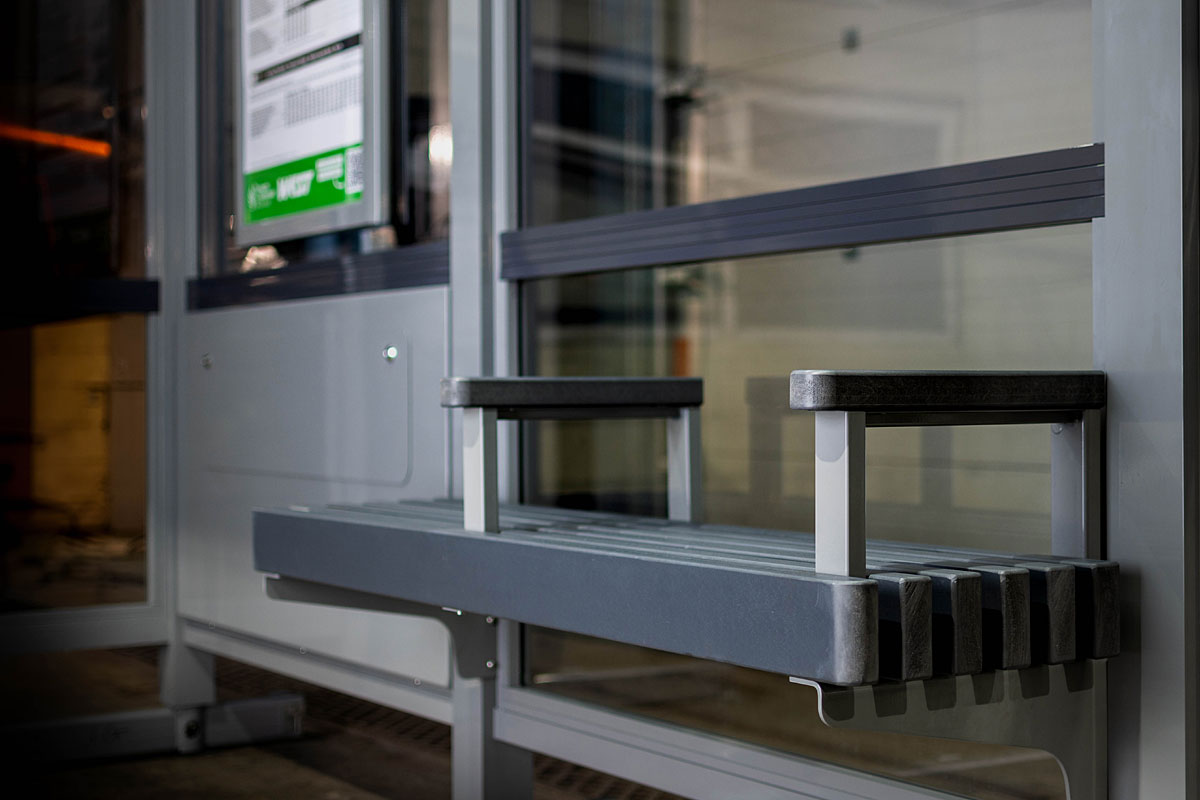

seating
sustainable FSC timber or recycled plastic seating with steel detailing and handles to comply with DDA
vertical glazing

options for toughened glass, laminated glass, solid aluminium powder coated panels or UV clear polycarbonate

roof glazing
options for opaque polar white Vanceva laminated and toughened glass, clear laminated and toughened glass or UV polycarbonate
drainage
from roof canopy to aluminium rain water goods with gutter brush to prevent build up of debris. Drainage discharged at either end of the structure through UPVC concealed rainwater goods to low level
timetable case
optional but generally supplied as Double Royal hinged aluminium extruded and polyester powder coated 1020x620mm
RTI bracket
available to interface with any suppliers screen
solar
available for shelter lighting, RTI screens and phone charging options
green roof
shelter structure purpose designed to accommodate the additional canopy load to supply optional green roof to assist with biodiversity and SuDS to reduce surface water drainage
CCTV
optional mounting and storage positions
phone charging
optional charging points can be concealed within a hybrid timber seating option
installation details
Fixing options for securing to concrete raft foundations
